xafe panel

SEMI-INCOMBUSTIBLE PIR PANEL

Based on the high energy efficiency and excellent durability of PIR, the xafe panel achieves fire-resistant performance with its solid core, ensuring fire safety. It is an innovative fireproof insulation solution from Kyungdong One that creates a safe and comfortable living environment.

xafe panel

Features

  • extra

    더

  • safe

    마음을 놓는

Extra-relieving space

  • "xafe" as a combination of extra(more) and safe(feel relieve)
  • Extra denser,
  • Extra warmer,
  • Extra classier,
  • Extra safer,
  • It is a brand of KD ONE which makes extra-relieving space.

Extra workability, Extra safer,

The xafe panel is a one-solution sandwich panel that simultaneously satisfies the need for a fire-safe space and energy conservation.

Product Features

01

Enhanced Fire Safety

Provides excellent safety due to the fire-resistant properties of the core material.

Ensures a fire-resistance performance of 30 minutes for the roof structure.

02

High Insulation Performance

Achieves a low thermal conductivity of 0.020 W/mK, allowing for a thinner product thickness.

The tightly foamed insulation urethane blocks moisture intrusion.

03

Exceptional Durability and Workability

Composed of a dense cell structure, offering high strength and outstanding durability.

Sturdy yet lightweight, making processing easy and assembly convenient.

Line-up

Roof Panel

Roof type

[ KD-RFR ]

Deck type

[ KD-RFD ]

TPO type

[ KD-RFT ]
Internal Wall & Ceiling Panel
[ KD-FN1 ]
[ KD-FN1s ]
External Wall Panel

Flat Type

[ KD-FC1 ]
[ KD-FU1 ]
[ KD-FU5 ]
[ KD-FU2s ]

Rib Type

[ KD-RC1 ]
[ KD-RU5 ]

Small Rib Type

[ KD-SC1 ]
[ KD-SU5 ]

Big Rib Type

[ KD-BC1 ]
[ KD-BU5 ]

Installation detail

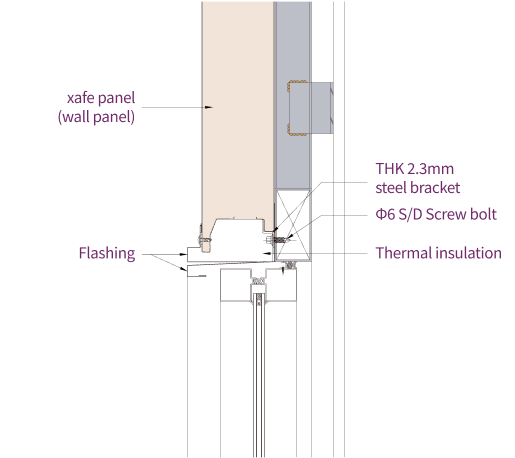

Flashing Type Window Joint-1

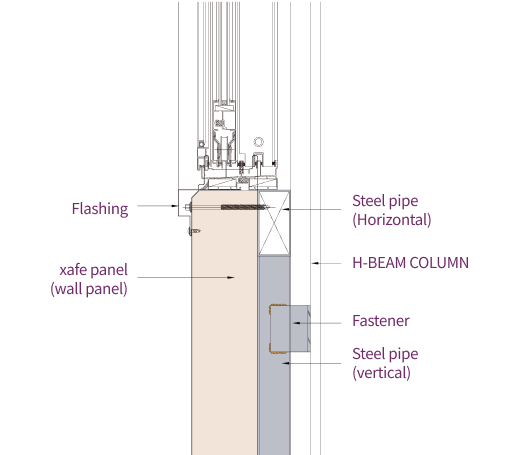

Flashing Type Window Joint-2

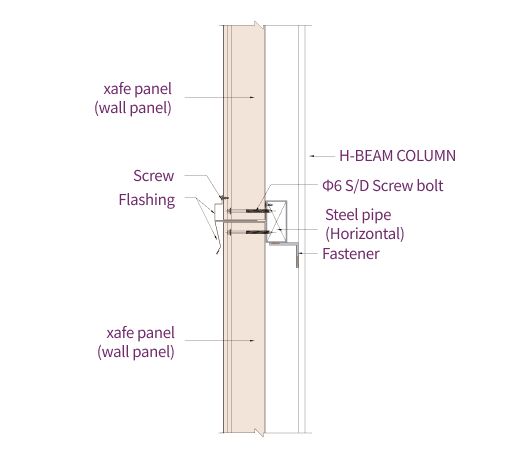

Horizontal Panel Joint

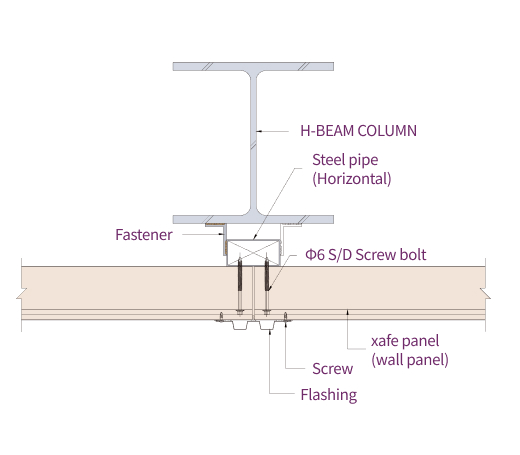

Vertical Panel Joint
Vertical Panel Joint

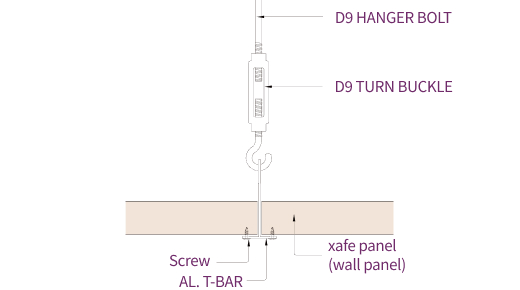

Interior Panel Ceiling Detail

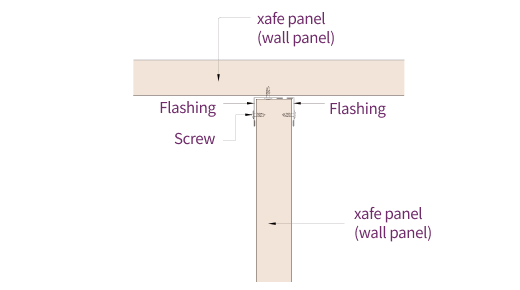

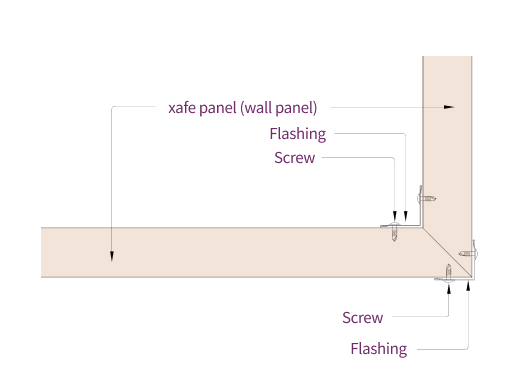

Interior Panel Wall & Ceiling Joint Detail

Property/SPEC

Specification

Material Exterior Steel Galvanized steel sheet and etc (upon customer needs)
Coat Silicon Polyester, fluoroplastic (2 or 4 coat) and etc (upon customer needs)
Insulation SEMI-INCOMBUSTIBLE PIR
Dimension Width (mm) 1,000
Length (m) Max. 18
Thickness (mm) 50, 75, 100, 125, 150

Dimensional tolerance

Width (㎜) Length (㎜) Thickness (㎜) Squarenes※ (㎜)
± 3.0 ± 5.0 ± 1.5 8.0 or less
  • ※ Dimensional difference between diagonals

Property

Fire resistance Thermal conductivity
(W/mK)		 Density
(㎏/㎥)		 Moisture absorption
(g/100㎠)		 Compression strength
(N/㎠)
xafe core SEMI-INCOMBUSTIBLE 0.020 or less 45 or more 3.0 or less 10 or more
Test method KS F ISO 5660-1
KS F 2271 		KS M 3809 KS M 3809 KS M 3809 KS M 3809

U-Value (Roof type)

Thickness (㎜) 50 75 100 125 150 175 200
U-Value (W/㎡K) 0.380 0.258 0.195 0.157 0.131 0.113 0.099

U-Value (Wall type)

Thickness (㎜) 50 75 100 125 150 175 200
U-Value (W/㎡K) 0.377 0.256 0.194 0.156 0.131 0.112 0.098
