xafe board(XF board)

Semi-Noncombustible PIR BOARD

It is the first urethane board insulation material in Korea to secure semi-noncombustible performance as a single material even without protective facing material.
Thanks to it's excellent insulation performance and semi-noncombustible performance, it can create a warm and fire-safe living environment.

xafe board(XF board)

Features

  • extra

    더

  • safe

    마음을 놓는

Extra-relieving space

  • "xafe" as a combination of extra(more) and safe(feel relieve)
  • Extra denser,
  • Extra warmer,
  • Extra classier,
  • Extra safer,
  • It is a brand of KD ONE which makes extra-relieving space.

Extra warmer, Extra safer,

xafe board keeps the temperature of the space,
excellent insulation performance,
and thanks to Semi-noncombustible property, it keeps safe against fire.

Product Features

01

Excellent fire safety

Semi-noncombustible property even without protective facing material meeting enhanced fire safety regulation in Korea.

02

Excellent insulation

High-performance insulation capable of meeting enhanced insulation standards through low thermal conductivity of 0.020 W/mK.

03

High economic feasibility

With it's superior insulation property, energy saving can be possible.

04

Superior durability

Consisting of closed cells, it is structurally stable and has high durability due to low moisture absorption

05

Eco-Friendly

Achieved top-tier eco-friendly certifications for minimizing indoor pollutant emissions

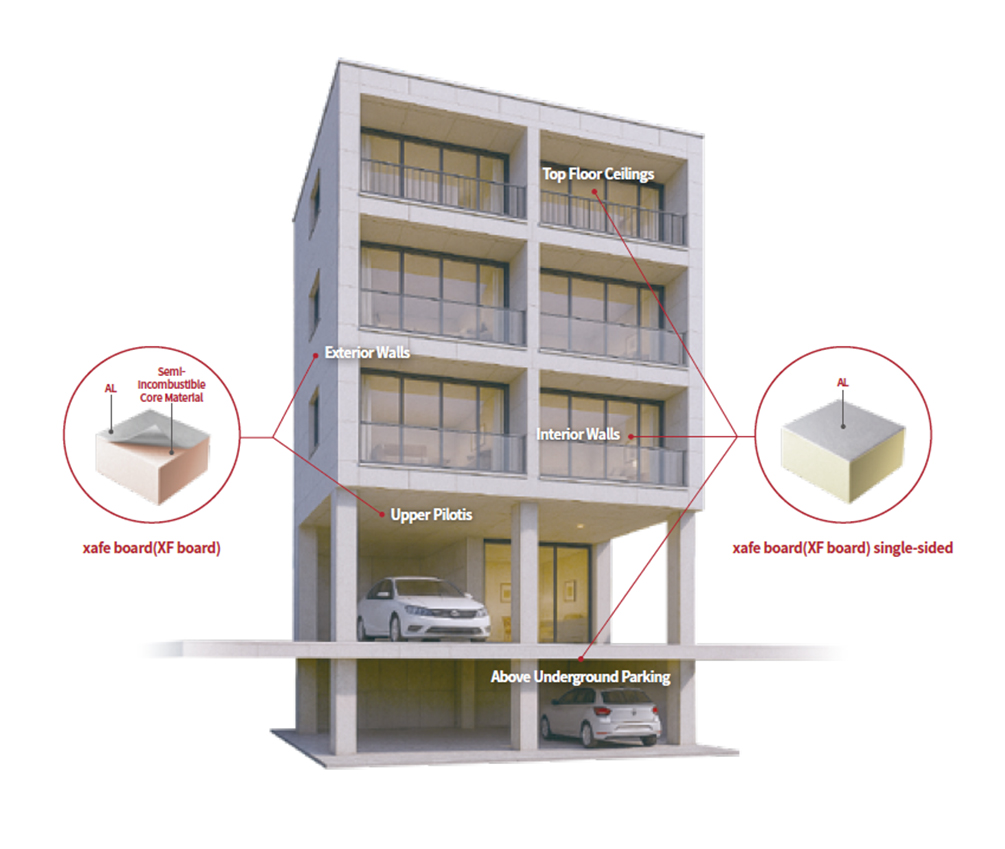

Building Application Areas

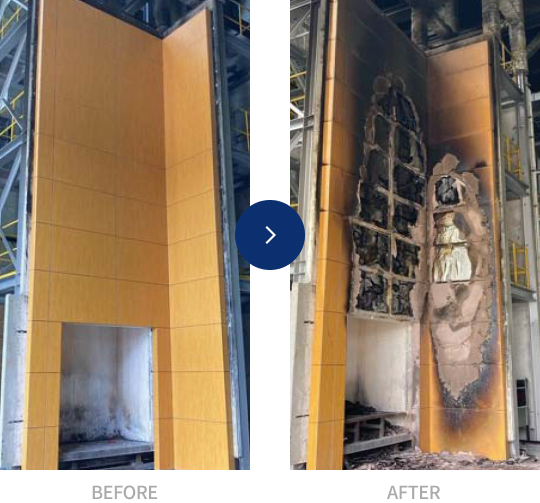

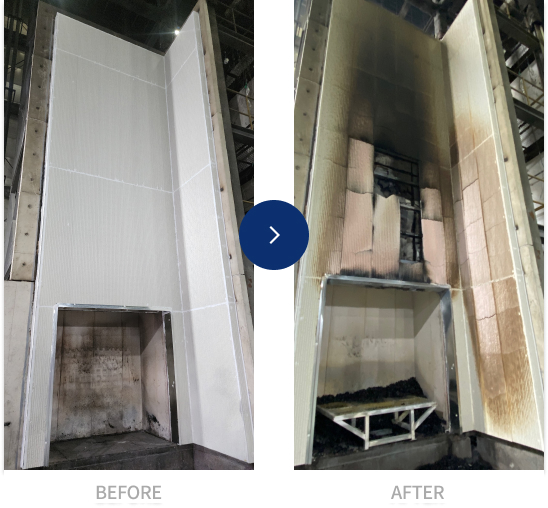

Approved Fire performance of external cladding systems (KS F 8414 ≒ BS 8414)

01

xafe board + Stone

02

xafe board + AL composite board

03

xafe board + Masonry

04

xafe board + KD Steel(colored steel sheet)

05

xafe board + Ceramic siding

06

xafe board + AL Sheet

Property/SPEC

Specification

xafe board xafe board(faced)
Width(mm) 1,000 1,000
Length(mm) 2,000 2,000
Thickness(mm) 50~180 30~250

Properties

  Fire Safety Thermal Conductivity(W/mK) Density(kg/㎥) Absorption(%) Comprehensive Strength(kPa)
xafe board Core Semi-Noncombustible under 0.020 over than 35 under 3.0 over than 100
xafe board (faced) Faced Semi-Noncombustibleunder 0.020 over than 35 under 3.0 over than 100
Test method KS F ISO 5660-1
KS F 2271		 KS M ISO 4898 KS M ISO 4898 KS M ISO 4898 KS M ISO 4898

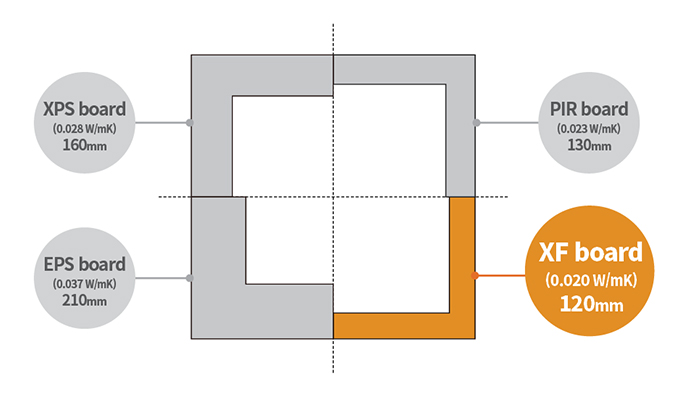

Insulation Thickness Comparison
