Ultra-efficient microporous insulation (Molded type)
It is an ultra-high-efficiency microporous insulation material that exceeds the limit of existing insulation materials at ultra-high temperatures with 255% superior insulation performance compared to aerogels. Minimized insulation thickness can revolutionize facility space savings and meet both affordability and insulation when used with HYPERLITE and composite systems.
It is a new concept of high-efficiency thermal insulation in which spherical silica particles in micro units are compressed/molded to block heat conduction and to block convection and radiation through numerous diaphragm.
Product Features
01
It has a thermal conductivity of 0.022W/mK or less, providing innovative insulation performance compared to existing insulation materials (25% better thermal conductivity than aerogel insulation at 600℃)
02
ULTRATHERM, which delivers innovative insulation performance, realizes the same performance with approximately 60% of aerosol thickness and approximately 20% of E-glass thickness.
03
It is possible to save construction period and facility space by reducing thickness, and thereby reduce investment costs.
04
Excellent water-repellent products that prevent absorption of external moisture are free from moisture interference.
05
Granular insulation of excellent maintenance effect compared to fiber system.
06
Fumed silica and perlite are Eco-friendly material, which are harmless to the human body and ensure safety against fire.

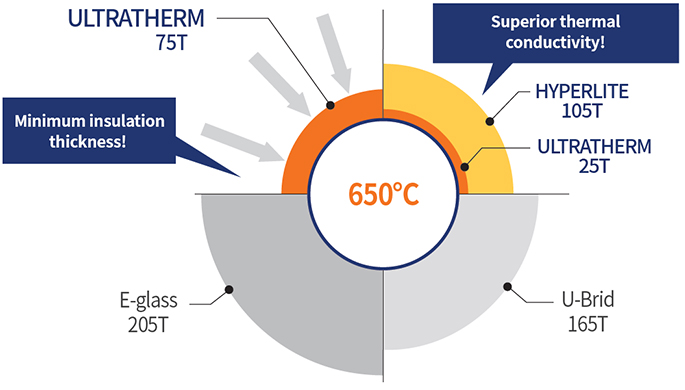

A combination of ULTRATHERM and HYPERLITE above 300°C can save space by reducing thickness while reducing energy costs most efficiently.
※ 8" pipe, ambient air temperature of 20℃, surface heat transfer rate of 12W/m², based on the same amount of heat emmision"
boiler, turbine equipment, and piping
NCC, BTX, equipment and piping
CDU, FCC, SRU, equipment and piping
space/aircraft, defense industry, iron manufacture, steel manufacture, paper making, oil manufacture, flour milling, pharmaceutical, ceramics, construction, shipbuilding, blast furnaces, furnaces, smelting furnaces, heating furnaces, and other hot sections.
Product Properties
| Classification | ULTRATHERM | ASTM C1676 Microporous 보온재 | ASTM C1728 Aerogel | |
|---|---|---|---|---|
| Maximum operating temperature (℃) | Max. 950 | 1,000 | 649 | |
| Density(kg/m³) | 250±15 (Pipe cover) 225±25 (Board) |
Max. 400 | 160 ~ 240 | |
| Compressive strength(N/cm²) (when 10% deformation) | Min. 45 | Min. 14 | Min. 2.07 | |
| Thermal conductivity (Max, W/mK) |
100℃ | 0.022 | 0.03 | 0.023 |
| 400℃ | 0.029 | 0.038 | 0.046 | |
| 600℃ | 0.035 | 0.047 | 0.089 | |
Product Specification
| SIZE | A(mm) | 100 | 125 | 150 | 175 | 200 | 225 | 250 | 300 | 350 | 400 | 450 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| B(inch) | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 12 | 14 | 16 | 18 | |
| A(mm) | 500 | 550 | 600 | 650 | 700 | 750 | 800 | 850 | 900 | 950 | 1,000 | |
| B(inch) | 20 | 22 | 24 | 26 | 28 | 30 | 32 | 34 | 36 | 38 | 40 | |
| Thickness (mm) | 25 | |||||||||||
| Length (mm) | 600 | |||||||||||
