Water repellent perlite insulation material with improved workability
SUPERLITE-K is the epitome of perlite insulation material completed with excellent technology and proven know-how, and boasts stable quality that has been certified by KS for the first time in Korea. Furthermore, increased flexural strength and longer product length minimize heat loss in joints, improving economic feasibility.
" Product Length 1,000 mm"
Improve construction efficiency
Heat loss reduction
Product Features
01

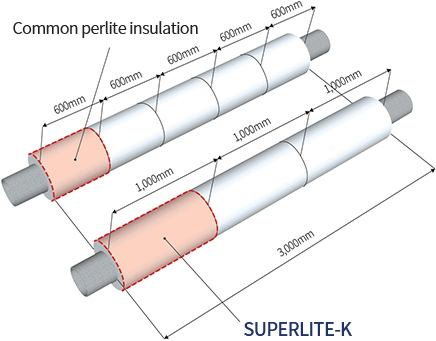

Product that is 1.6 times longer than conventional 600 mm perlite insulation
02
Increased product length reduces joint part and reduces heat loss
03
Increased product length reduces the number of insulation installation work by 40%
04
Improved product strength reduces worry of damage when handling
05
Due to the characteristics of Granular insulation, the effect of excellent maintenance compared to fibrous insulation
06
Excellent water repellent performance
07
Presence of Na+600 ppm or more and SiO₃²-1,000 ppm or more to prevent corrosion of pipes
08
Block rainwater and condensation when stored in pallet loading and wrapped packaging
09
Pallet loading increases convenience for loading/unloading of vehicles.
10
It does not use asbestos and is an inorganic raw material that is non-irritating and has excellent fire safety.
boiler, turbine equipment, and piping
NCC, BTX, equipment and piping
CDU, FCC, SRU, equipment and piping
space/aircraft, defense industry, iron manufacture, steel manufacture, paper making, oil manufacture, flour milling, pharmaceutical, ceramics, construction, shipbuilding, blast furnaces, furnaces, smelting furnaces, heating furnaces, and other hot sections.
Product Properties
| Classification | SUPERLITE-K | KSF 4714 | ASTM C610 | ASTM C533 | |
|---|---|---|---|---|---|
| TYPE 1 | TYPE 2 | ||||
| Maximum operating temperature (℃) | 650 or lower | 650 or lower | 650 or lower | 649 or lower | 649 or lower |
| Density (kg/m³) | 180 or less | 200 or less | 155 or less | 240 or less | 240 or less |
| Flexural strength (N/cm²) | 30 or higher | 25 or higher | 20 or higher | 31 or higher | 34.4 or higher |
| Linear shrinkage rate (%) (650°C,3hr) |
2.0 or lower | 20 or lower | 20 or lower | - | - |
| Water repellency (%) | 99 or higher | 98 or higher | 98 or higher | - | - |
| Thermal conductivity (W/mK) (70°C) | 0.062 or lower | 0.062 or lower | 0.050 or lower | - | - |
| Combustibility | Non-combustibility | - | - | Non-combustibility | |
Product Specification
1. SUPERLITE-K Pipe cover
| SIZE | A(mm) | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 90 | 100 | 115 | 125 | 150 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| B(inch) | 1/2 | 3/4 | 1 | 1.25 | 1.5 | 2 | 2½ | 3 | 3½ | 4 | 4½ | 5 | 6 | |
| A(mm) | 175 | 200 | 225 | 250 | 275 | 300 | 325 | 350 | 375 | 400 | 425 | 450 | ||
| B(inch) | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 | ||
| A(mm) | 475 | 500 | 550 | 600 | 650 | 700 | 750 | 800 | 850 | 900 | 950 | 1000 | ||
| B(inch) | 19 | 20 | 22 | 24 | 26 | 28 | 30 | 32 | 34 | 36 | 38 | 40 | ||
| Thickness (mm) | 30, 40, 50, 65, 75, 90, 100 | |||||||||||||
| Length (mm) | 1,000 (Produced at 600 mm for 4" and 50T or less) |
|||||||||||||
2. SUPERLITE-K Round Board
| SIZE | A(mm) | 1,250 | 1,500 | 2,000 | 2,500 | 3,000 | 3,500 | 4,000 | 4,500 | 5,000 |
|---|---|---|---|---|---|---|---|---|---|---|
| B(inch) | 50 | 60 | 80 | 100 | 120 | 140 | 160 | 180 | 200 | |
| Thickness (mm) | 40, 50, 65, 75, 90, 100 | |||||||||
| Length (mm) | 1,000 | |||||||||
3. SUPERLITE-K Flat Board
| Thickness (mm) | 30, 40, 50, 65, 75, 90, 100 | |||||||
|---|---|---|---|---|---|---|---|---|
| Width (mm) | 300 | |||||||
| Length (mm) | 1,000 | |||||||
