HYPERLITE

Industrial high-efficiency water resistant perlite insulation

HYPERLITE has 99% water repellent performance, no heat loss due to moisture absorption, and can be used semi-permanently by preventing rust in plant pipes. It is a highly efficient water resistant perlite insulation that is easy to handle with thinness, low density, and excellent strength, and reduces the load on the facility to reduce the overall plant investment cost.
※ Winner of 2011 Presidential Award at the National Green Technology Awards!

HYPERLITE

Features

Great Thermal Insulation Performance with its 99% overall water repellency!

Product Features

99% full surface water repellency

HYPERLITE with 99% full surface water repellency does not worry about corrosion of pipes or deterioration of insulation due to moisture absorption, which is the biggest disadvantage of conventional fiber-type insulation.

High economy

It has a performance exceeding that of water-repellent perlite insulation _ KS F 4714 Grade 2, so it is possible to reduce heat loss by about 25% compared to the existing perlite insulation KS F 4714 Grade 1 when insulated to the same thickness.

Excellent workability

Compared to existing insulation materials, they are light in weight but has outstanding strength, and thus have excellency for handling and construction, maximize the convenience of construction of the elbow section through molded elbow products, and block energy lost through gaps.

Excellent corrosion resistance

It has a large amount of corrosion inhibitors to prevent corrosion of steelㆍSTS steel pipes, especially shows excellent effect of corrosion resistance in coastal areas where power plants and petrochemical complexes are mainly located.

Excellent durability

It is a molded product which is highly durable and has no physical or chemical changes during long-term use, so it can be used semi-permanently without any changes in insulation performance.

Eco-friendly materials, non-flammable materials

It is a 100% asbestos-free product that is harmless to the human body by mainly using perlite, an Eco-friendly material also used as a filtration aid in the manufacture of food, and is not burned, ensuring safety against unexpected factory fires.

Comparison of Water Resistance Performance

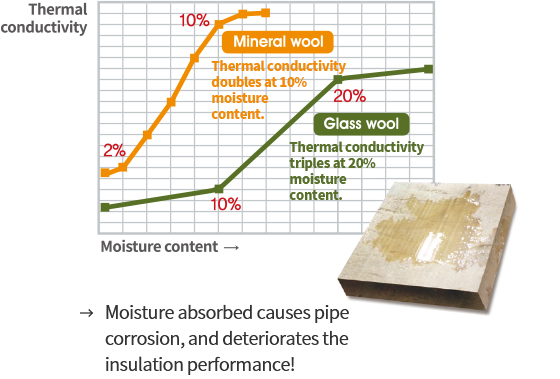

Fibrous Insulations

Granular Insulations

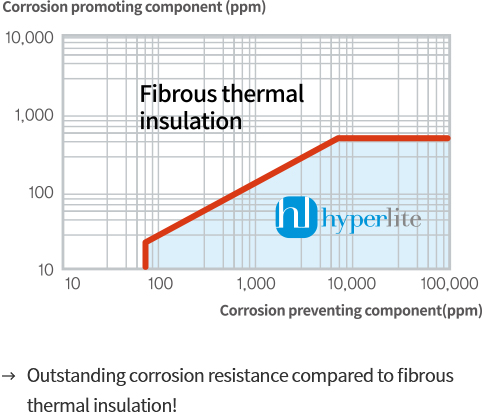

Range of the Use of Insulation Material by Ion Concentration

Comparison of Weight and Strength

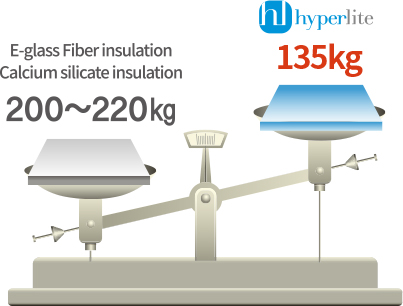

Weight comparison with common insulation material

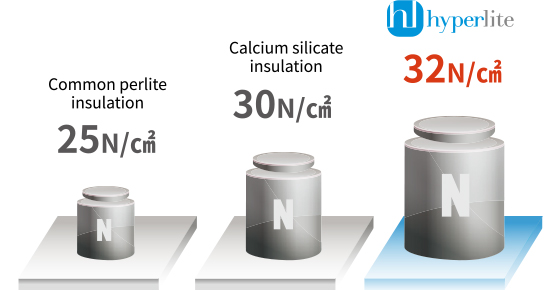

Strength comparison with common insulation material

Field of Application

Power generation

boiler, turbine equipment, and piping

Chemical

NCC, BTX, equipment and piping

Petroleum Refining

CDU, FCC, SRU, equipment and piping

Other

space/aircraft, defense industry, iron manufacture, steel manufacture, paper making, oil manufacture, flour milling, pharmaceutical, ceramics, construction, shipbuilding, blast furnaces, furnaces, smelting furnaces, heating furnaces, and other hot sections.

Property/SPEC

Product Properties

Classification		HYPERLITE	ASTM C 610	ASTM C 533 Type I
Classification		HYPERLITE	ASTM C 610	ASTM C 533 Type I
Maximum operating temperature	MAX, ;℃	650	649	649
Density	MAX, Kg/m³	135±10	240	240
Thermal conductivity (@70℃)	MAX, W/mK	0.048	0.073	0.062
Flexural strength	MIN, N/cm²	32	31	34.4
Linear shrinkage rate (@650℃, 3HR)	MAX, %	2.0	-	-
Water repellency	MIN, %	99	-	-
incombustibility	-	incombustible material	Non-combustibility

※ Please contact our technical sales team for details.

Product Specification

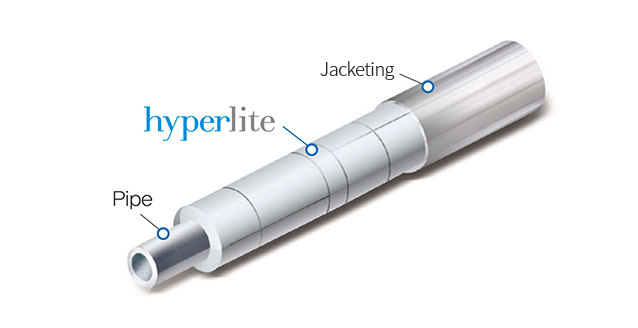

1. HYPERLITE Pipe cover

SIZE	A(mm)	15	20	25	32	40	50	65	80	90	100	115	125	150
	B(inch)	1/2	3/4	1	1.25	1.5	2	2½	3	3½	4	4½	5	6
	A(mm)	175	200	225	250	275	300	325	350	375	400	425	450
	B(inch)	7	8	9	10	11	12	13	14	15	16	17	18
	A(mm)	475	500	550	600	650	700	750	800	850	900	950	1000
	B(inch)	19	20	22	24	26	28	30	32	34	36	38	40
Thickness (mm)		30,40,50,65,75,90,100 (25T is available upon request)
Length (mm)		1,000 (Produced at 600 mm for 4" and 50T or less)

※※ Please contact our technical sales team for details.

2. HYPERLITE Round Board

SIZE	A(mm)	1,250	1,500	2,000	2,500	3,000	3,500	4,000	4,500	5,000
SIZE	B(inch)	50	60	80	100	120	140	160	180	200
Thickness (mm)		40, 50, 65, 75, 90, 100
Length (mm)		1,000

※※ Please contact our technical sales team for details.

3. HYPERLITE Flat Board

Thickness (mm)		30, 40, 50, 65, 75, 90, 100
Width (mm)		300
Length (mm)		1,000

※※ Please contact our technical sales team for details.

4. HYPERLITE Elbow Cover

1) Molded Elbow cover

SIZE	A(mm)	100	125	150	200	250	300	350	400
SIZE	B(inch)	4	5	6	8	10	12	14	16
Thickness (mm)		30, 40, 50, 65, 75, 100

※※ Please contact our technical sales team for details.

2) Pre-Cut Elbow Cover

SIZE	A(mm)	100	115	125	150	175	200	225	250	275
	B(inch)	4	4½	5	6	7	8	9	10	11
	A(mm)	300	325	350	375	400	425	450	475	500
	B(inch)	12	13	14	15	16	17	18	19	20
	A(mm)	550	600	650	700	750	800	850	900	950	1000
	B(inch)	22	24	26	28	30	32	34	36	38	40
Thickness (mm)		30,40,50,65,75,90,100 (25T is available upon request)
