Esscoat NF-Ⅲ / NF-Ⅲ(Antifungus)

Perlite fire resistive spraying material for steel frame

It is the world's first steel frame fire resistive spraying material that improves both fire resistance and construction performance simultaneously by applying an ultra-fine hollow material to the fire resistive coating material.

Esscoat NF-Ⅲ / NF-Ⅲ(Antifungus)

Features

Product Features

01

Various types of fire resistive spraying solutions

It can be applied not only to general certified fire resistive structures but also to composite beams. It can be applied when designing fireproof performance by securing spraying thickness data for various cross-sectional shape factors. In addition, Esscoat NF-III (antimicrobial) for basement product allows application of the basement without worrying about mold.

02

Minimum covering thickness in Korea

Obtained the minimum thickness of fire resistive structure in Korea through optimal blending design with ultrafine hollow material. Thin covering thickness enables economical construction such as curtailed construction period and reduced management costs.

03

Excellent workability and stable quality

The ball-bearing effect of ultra-fine hollow perlite provides excellent workability and excellent dimensional stability. No need for surface coating to prevent dust and no falling/crack/rust.

04

Eco-friendly building materials

Eco-friendly perlite products that do not contain asbestos or asbestos-containing substances which have obtained the highest rating of 'Environmental Mark Certification' and 'Eco-friendly Building Materials'.

05

Esscoat NF-III (Antifungus) for basement

Fire resistive spraying material for basement that is highly resistant to bacteria and is specialized in preventing mold.

Field of Application

01

Steel beam and column

02

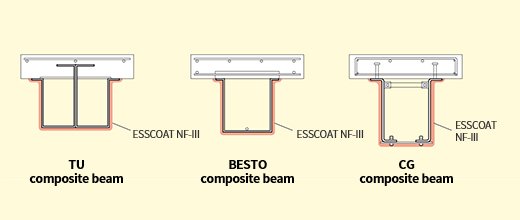

Composite beam with certified fire resistive structure

Property/SPEC

Contents and Properties of Fire Resistive Structure Certification

Structure Time of fireproof Coating thickness (mm) Density (g/cm³) Adhesion strength (N/cm²)
Beam 1 hr 9 or thicker 0.33 or higher 5.6 or more
2 hrs 18 or thicker (15 or thicker)
3 hrs 28 or thicker (23 or thicker)
Beam (antimicrobial) 3 hrs 28 or thicker (23 or thicker)
Column 1 hr 9 or thicker
2 hrs 19 or thicker
3 hrs 29 or thicker
Column (antimicrobial) 3 hrs 29 or thicker
TU composite beam 2 hrs 15 or thicker 5.0 or more
3 hrs 21 or thicker
BESTO composite beam 2 hrs 16 or thicker
3 hrs 21 or thicker
CG composite beam 3 hrs 21 or thicker
ACT composite beam 3 hrs 25 or thicker 5.6 or more
OCFT composite beam 3 hrs 22 or thicker

1)() Lower steel beam flange end

Construction Method of Esscoat NF-III

Preparation for work
  • Operation timing In principle, all ductwork and piping works shall be constructed after the basic construction of accessories such as anchors and hangers is completed.
  • Temperature The temperature of the construction site and the surface to be attached shall be maintained at 4°C or higher during the construction period and curing period and, when constructing at a temperature below 4℃, thermal insulation measures such as heating shall be taken to reach a temperature of 4℃ or higher, and this temperature shall be maintained during the standard curing period after construction.
  • Surface treatment The surface of the work surface shall be inspected to remove foreign substances such as dust rust, oil, paint, etc. and when constructing the Gwangmyeongdan painting area, the foreign substances as described above shall be removed and the adhesion shall be checked before construction.
Construction method
  • After Esscoat NF-III is added, water is mixed at a weight ratio of 1:1.1:1.5, and stirred with a mixer for about 2 to 5 minutes.
  • In principle, the distance between the tip of the nozzle and the construction surface shall be maintained at 30 to 60 cm, and the construction angle shall be 90°, and the construction work to be sprayed below 70° shall be prohibited.
  • Esscoat NF-III can perform the construction with certified thickness with a one-time construction.
Curing

Curing shall be made in places with adequate ventilation and the rapid drying should be avoided, and the curing period shall be as shown in the table below.

Temperature / Construction thickness Beam
(Lower steel beam flange end, mm)		 Column (mm)
9(9) 18(15) 28 or thicker (24 or thicker) 9 19 29
Summer(40℃ or lower) 4~6 days 6~8 days 9~11 days 4~6 days 6~8 days 9~11 days
Spring, Fall(10~20℃) 5~7 days 7~9 days 10~12 days 5~7 days 7~9 days 10~12 days
Winter(4℃ or higher) 6~8 days 9~11 days 12~15 days 6~8 days 9~11 days 12~15 days
