KD ONE Ceratech Business Products

Features

extra
더
safe
마음을 놓는

Extra-relieving space

"xafe" as a combination of extra(more) and safe(feel relieve)
Extra denser,
Extra warmer,
Extra classier,
Extra safer,
It is a brand of KD ONE which makes extra-relieving space.

Extra classier, Extra safer,

"xafe door" with a variety design enhances the classy of the space, protects against fire, and blocks external noise and condensation.

Product Introduction

Acknowledged High-Performance Quality Fire Door

Fire-shielding(90 minutes)

In the event of a fire, it effectively blocks flames for 90 minutes while preserving the structural integrity of the fire door.
Heat-shielding(60 minutes)

In case of a fire, it maintains the outer surface temperature of the fire door below an average of 140°C for 60 minutes, ensuring safety from high temperatures.
Insulation(0.962 W/m²K)

Minimize energy loss through the application of the high quality insulation core system.
Condensation Prevention(TDR 0.3)

The single-plate structure prevents the formation of water droplets on the fire door's surface, even during significant temperature disparities between indoors and outdoors, notably in colder winter conditions.
Enhanced Security Performance

The dual-packed wing structure enhances both durability and security performance.
Shield Against Noise and Drafts(Class 1 Airtightness)

Outstanding airtightness prevents the intrusion of noise and drafts, providing an effective barrier against smoke and toxic gases in case of a fire.

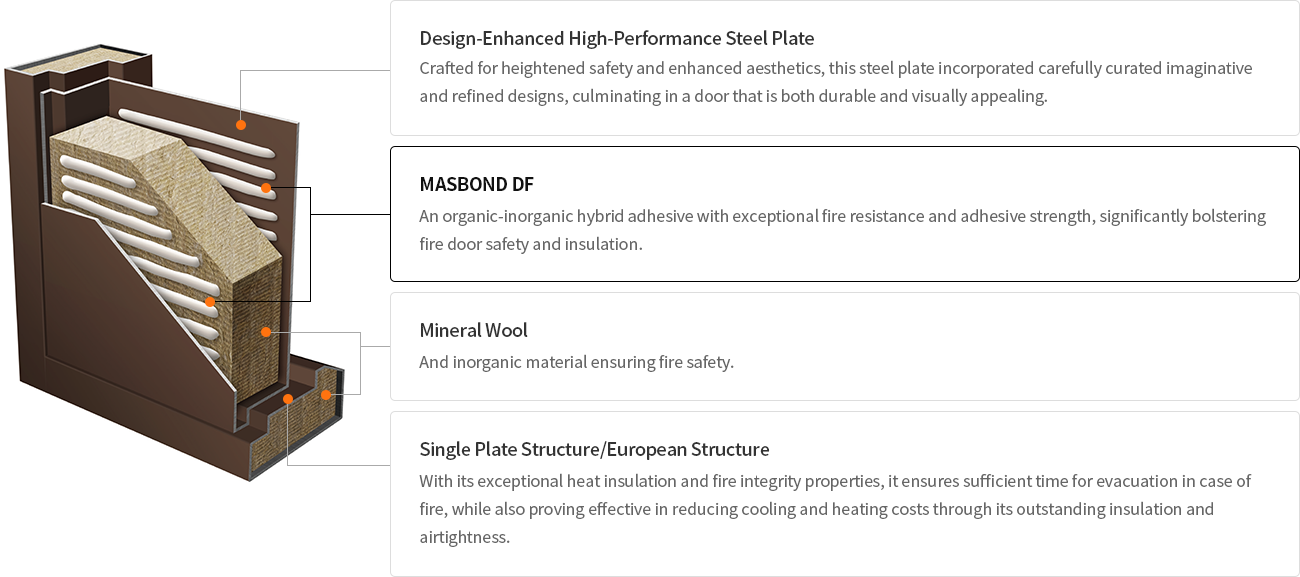

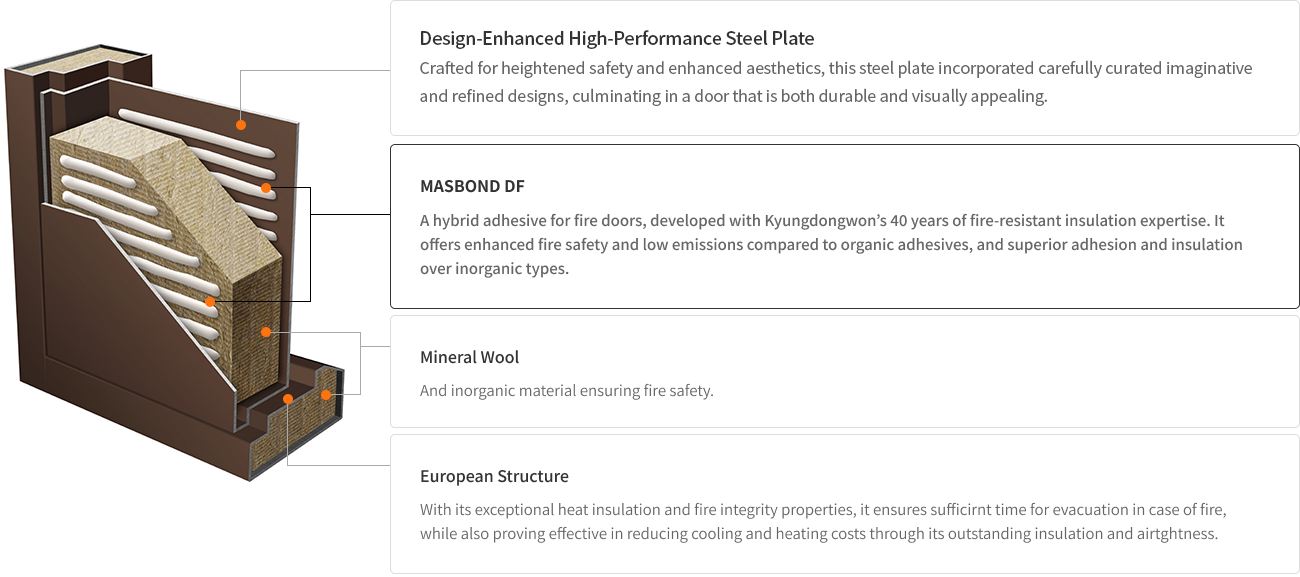

MAS System

High quality fire door system with KD’s the organic/inorganic hybrid adhesive.
Thanks to KD’s special adhesive, fire safety and durability can be enhanced.

Design-Enhanced High-Performance Steel Plate

Crafted for heightened safety and enhanced aesthetics, this steel plate incorporated carefully curated imaginative and refined designs, culminating in a door that is both durable and visually appealing.

MASBOND DF

An organic-inorganic hybrid adhesive with exceptional fire resistance and adhesive strength, significantly bolstering fire door safety and insulation.

Mineral Wool

And inorganic material ensuring fire safety.

Single Plate Structure/European Structure

With its exceptional heat insulation and fire integrity properties, it ensures sufficient time for evacuation in case of fire, while also proving effective in reducing cooling and heating costs through its outstanding insulation and airtightness.

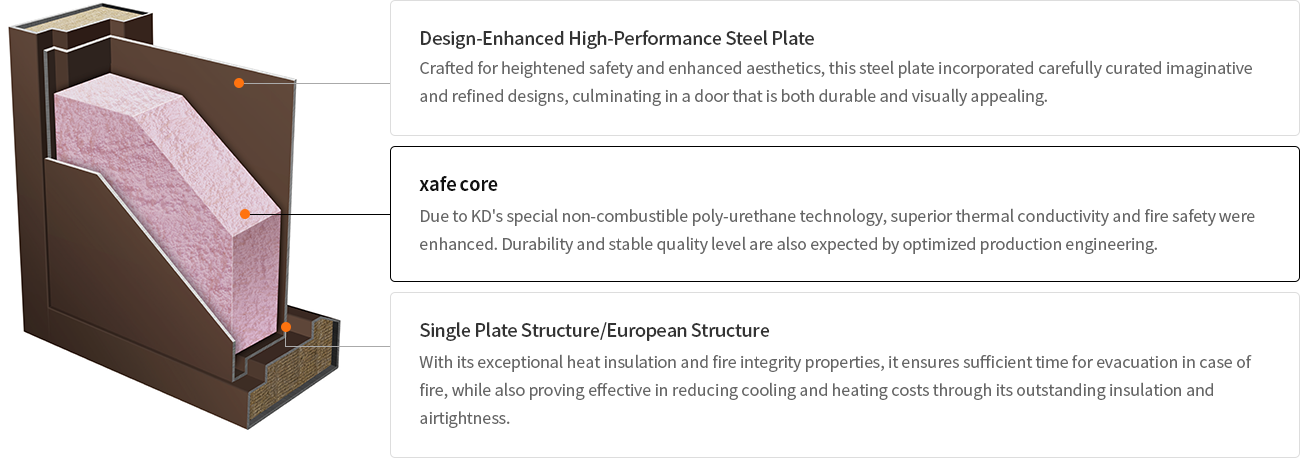

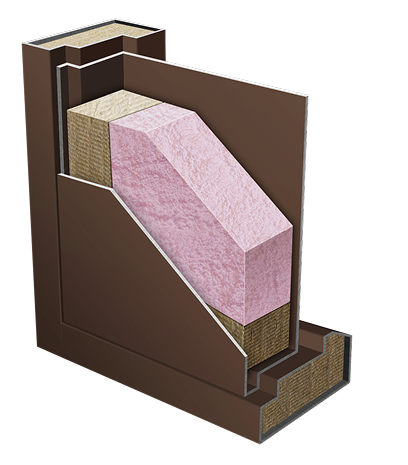

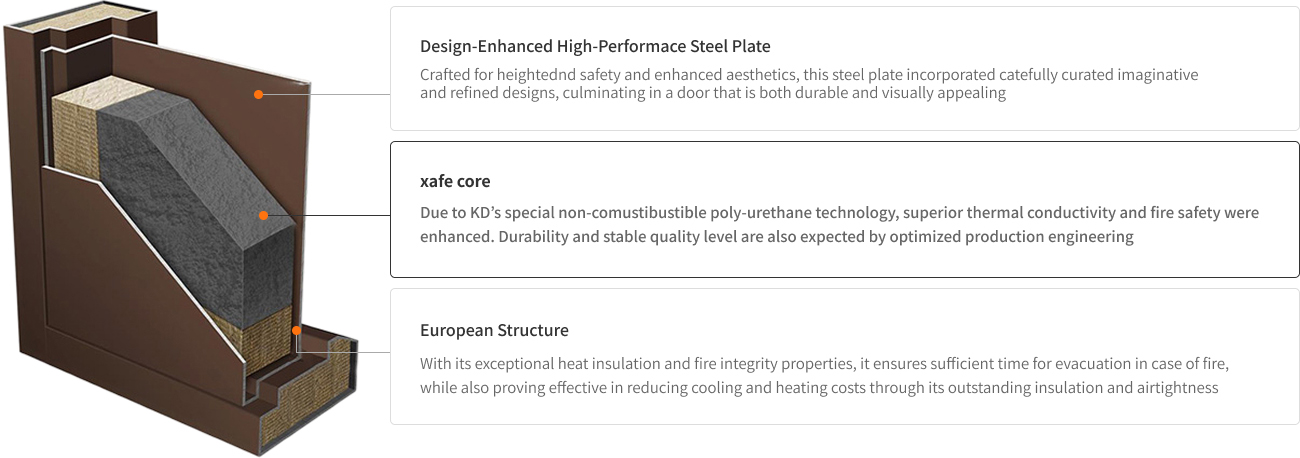

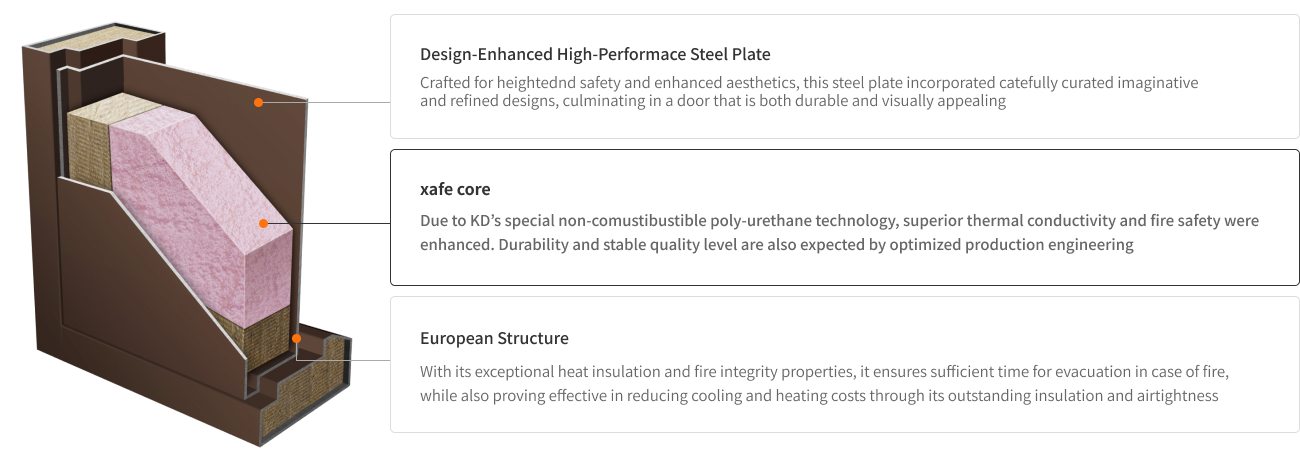

XC System

High quality fire door system with KD’s the non-combustible Poly-Urethane insulation.
Thanks to KD’s special insulation, strength of door can be enhanced and weight of door can be reduced.

Design-Enhanced High-Performance Steel Plate

Crafted for heightened safety and enhanced aesthetics, this steel plate incorporated carefully curated imaginative and refined designs, culminating in a door that is both durable and visually appealing.

xafe core

Due to KD's special non-combustible poly-urethane technology, superior thermal conductivity and fire safety were enhanced. Durability and stable quality level are also expected by optimized production engineering.

Single Plate Structure/European Structure

With its exceptional heat insulation and fire integrity properties, it ensures sufficient time for evacuation in case of fire, while also proving effective in reducing cooling and heating costs through its outstanding insulation and airtightness.

Color/Design

xafe door introduces an array of creative and sophisticated lineups, carefully tailored to cater to the unique needs of our customers.

SMART LINE	art door offering a convenient and secure living experience, seamlessly integrating high quality with cuttingedge technologies.
PREMIUM LINE	A door that completes the surroundings, crafting a space you'll want to relish for extended periods, with its exquisite design.	Nature collection Modern Plus collection
SMART LINE	A door designed for comfort and aesthetics, harmonizing effortlessly with diverse preferences and living spaces.	Modern collection

For designs tailored to evacuation spaces and communal fire doors, please contact us.

SMART LINE

Enhancing high-quality doors, this innovation introduces precise facial recognition technology and an automatic door opening and closing system, ensuring a secure and convenient residential experience.

※ This all-inclusive solution encompasses a premium door, door lock, and door check, available for selection from our premium collection lines: Nature, and Modern Plus.
Features
- 3D Face Recognition Lens

  Empowered by deep learning technology that distinguishes between real faces and photos/videos.
- Intrusion and Vandalism Alerts

  Triggers an 80 dB alarm in the event of lock breakage or unauthorized entry.
- Door Jamming Protection

  Automatically halts operation if any part of the body gets caught in the door.
- Adjustable Door Opening and Closing: Speed, Angle, and Sensitivity

  Provides the convenience of tailoring the automatic opening and closing function to individual preferences, allowing for detailed customization.
- Fast and Accurate Face Recognition

  Achieves face authentication within 1 second, swiftly completing door opening (limited to registered faces).
- Option Of Using a Smart Key or Password

  Provides a comprehensive 4-way authentication system including face recognition, smart key, password, and IoT
NATURE Collection

Infused with a warm and natural design inspired by the outdoors, this door contributes to the comfort of your space.
- FPN-T000
- FPN-T010
- FPN-T011
- FPN-T001
※ Maximum door frame size: (W) 1100 mm x (H) 2200 mm

※ For right-handed door orders, the design will be mirrored for left and right.

※ Due to varying resolutions, colors may differ from the actual product; kindly consult with
MODERN PLUS Collection

Integrating surface textures with a minimalist design, this door embraces a contemporary and refined ambiance through textured color-coating, offering a modern and sophisticated touch.
- FPD-T500
- FPD-T540
- FPD-T520
- FPD-T530
※ Maximum door frame size: (W) 1100 mm x (H) 2200 mm

※ For right-handed door orders, the design will be mirrored for left and right.

※ Due to varying resolutions, colors may differ from the actual product; kindly consult with
MODERN Collection

Presenting a door with a sleek and inviting design, seamlessly harmonizing with a range of preferences and spaces.
- FGM-R001
- FGM-R002
- FGM-R003
- FGM-R006
※ Maximum door frame size: (W) 1100 mm x (H) 2200 mm

※ For right-handed door orders, the design will be mirrored for left and right.

※ Due to varying resolutions, colors may differ from the actual product; kindly consult with

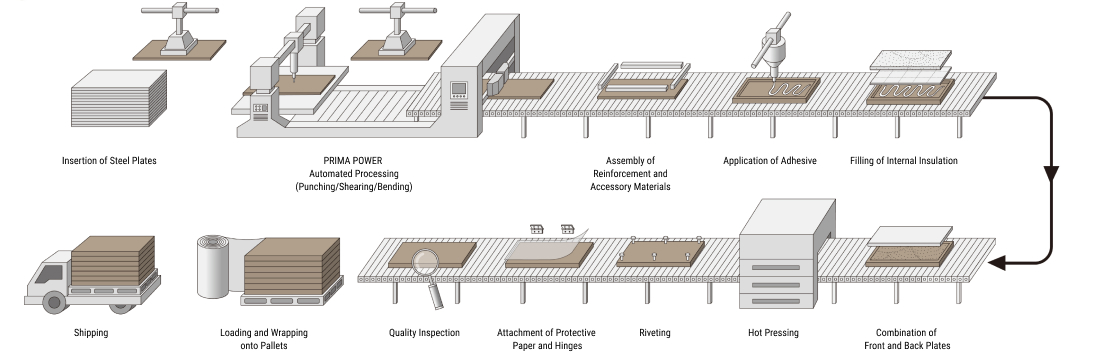

Door Manufacturing Process (MAS System)

Property/SPEC

Acknowledged High-Performance Quality Fire Door

ITEM		xafe door (MAS System)	xafe door (XC System)	Standard	Remarks
ITEM		Air-tightness and insulation specialized door / Fire and heat shielding door	Fire shielding door	Standard	Remarks
Fire proofing performance	Fire shielding	90minutes	70minutes	Min. 60minutes	Certificate of Accreditation of Fire Door
Fire proofing performance	Heat shielding	44minutes	-	Min. 30minutes	Certificate of Accreditation of Fire Door
Thermal conductivity		1.143W/m²K	0.962W/m²K	Max. 1.2W/m²K	High-efficiency appliance certification program
				Max. 1.4W/m²K	High-efficiency eco- friendly building (outdoor door)
				Max. 1.8W/m²K	High-efficiency eco- friendly building (indoor door)
Condensation Prevention	Door frame	TDR 0.17	TDR 0.18	Max. TDR 0.22	Design Criteria for Prevention of Condensation in Apartment Houses (area class 1)
Condensation Prevention	Door	TDR 0.29	TDR 0.28	Max. TDR 0.30
Air-tightness Performance		0.00m³(h·m²)	0.30m³(h·m²)	Max. 1m³(h·m²)	High-efficiency eco- friendly building (class 1)
Security Performance		Pass	Pass	Pass	-
